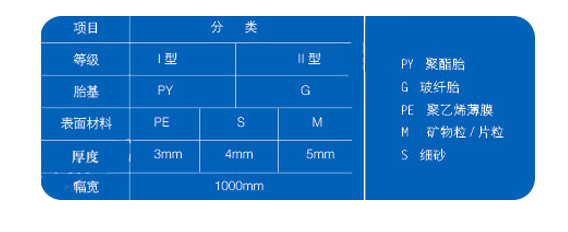

Polyester tire SBS modified asphalt waterproof membrane
●High tensile strength, high elongation, shrinkage deformation to the base
Strong cracking and adaptability
●Good low temperature performance, can still maintain efficacy at -50C,
Suitable for cold and hot areas, especially cold areas
●Puncture resistance, puncture resistance, tear resistance
●Corrosion resistance, mildew resistance, good weather resistance
●Convenient construction, hot melt construction can be operated in all seasons, connect Reliable seam

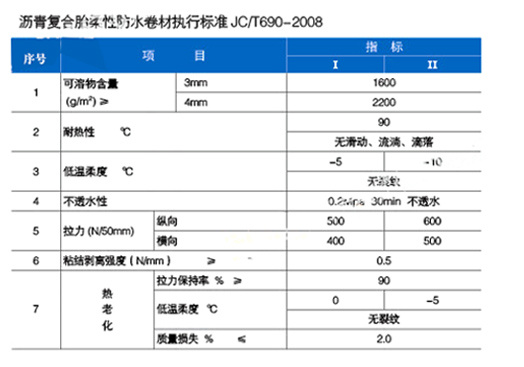

Glass fiber tire SBS modified asphalt waterproof membrane
●High tensile strength, good dimensional stability
●Good resistance to high and low temperature
●Damage resistance, corrosion resistance, mildew resistance, good weather resistance.
●Good construction performance and reliable joints

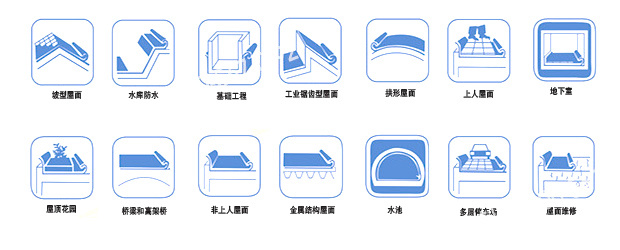

Waterproof and moisture proof for roofing, walls, basements, toilets, etc. of key waterproofing projects and industrial and civil buildings; bridges, roads,Waterproofing of parking lots, swimming pools, tunnels, cisterns and other buildings: especially suitable for buildings with frequent structural deformation and cold areas, Protection of pipeline anti-corrosion layer and guarantee, moisture-proof.
Elements of waterproof construction
Waterproof point map
The key waterproofing membrane can be constructed by hot melt method or cold bonding method alone, or by combining cold and hot method, that is, cold bonding method for large area.
The joints are constructed by hot melting.
●Before the construction, the base layer of the acceptance inspection should be cleaned up, and the dust at the corners should be blown away.
●Apply the base treatment agent to the baby uniformly, do not apply it repeatedly.
●After the base layer treatment agent is dried, the roof waterproof project and the underground waterproof project need to be added as an additional layer according to the design requirements.
Place additional layers on the site.
●Determine the laying order and direction of the coiled material and stretch the line at the base layer, then lay the coiled material and paste different parts of the coiled material
Construction should be in accordance with the following requirements.
●Roof: Paste or strip paste on the roll material and the base; 800mm around the roof should be fully pasted; sloping roof paste wine product
100% full paste between more than 70% coils and coils;
●Basement bottom plate: Coil and base can be fully glued, point glued, strip glued or empty paved, but the material must be fully glued between the coils;
●The basement wall: all the materials should be pasted between the coil and the base and between the coil and the coil;
●Additional layer:-General parts are fully pasted, and empty joints are allowed at the deformation joints.
●The order of paving is high-span first, then low-span; same height, first far and then near; same-plane, starting from low place.
●Roofing direction of roof:
●Slope <3% parallel to the roof direction
●Slope 3% ~ 15% parallel or perpendicular to the roof ridge direction
●When the slope is greater than 15% or is subject to vibration, it should be perpendicular to the roof ridge
●The joints parallel to the roof ridge are in the direction of water flow, and when they are perpendicular to the roof ridge, the joints should be paved along the prevailing wind direction.
Coil construction method
●Long edge lap: The width of the longitudinal lap of the coil should be ≥80mm, it must be carefully operated, and the adhesive should be evenly applied, not
It must be missed. Excess adhesive should be squeezed out of the edge of the cold-adhesive roll. The hot-melt method should form an asphalt strip on the side.
●Short edge overlap: both ends of the coil must be bonded. The tapping width should be ≥100mm, when using polyester tire coiled material
When empty paving, the two ends must be fully bonded over 500mm: cold bonding method: there should be adhesive extrusion at the seam. Hot melt method:
Asphalt strips should be extruded at the seams.
●When laying two adjacent rolls of the same layer, the horizontal overlapping edges should be staggered by more than 150mm, and the upper and lower layers of rolls are prohibited
Lay perpendicular to each other. .
●Remove the shale layer when the short side of the coiled material with shale sheet is overlapped. The method is to scrape the shale part with a trowel after heating with flame.
Butt joints can also be used. The method is to place a 300mm coil strip under the seam, butt the coil horizontally, and use it at the seam.
Sealing material handling.
●After the roll material is laid, the overlapping parts, ends and ends of the roll material must be sealed. Should be packed
Seal the material, sealant or cold adhesive, and then smooth it to form a clear asphalt strip.

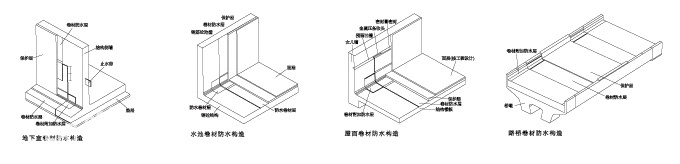

Schematic diagram of waterproof membrane construction
